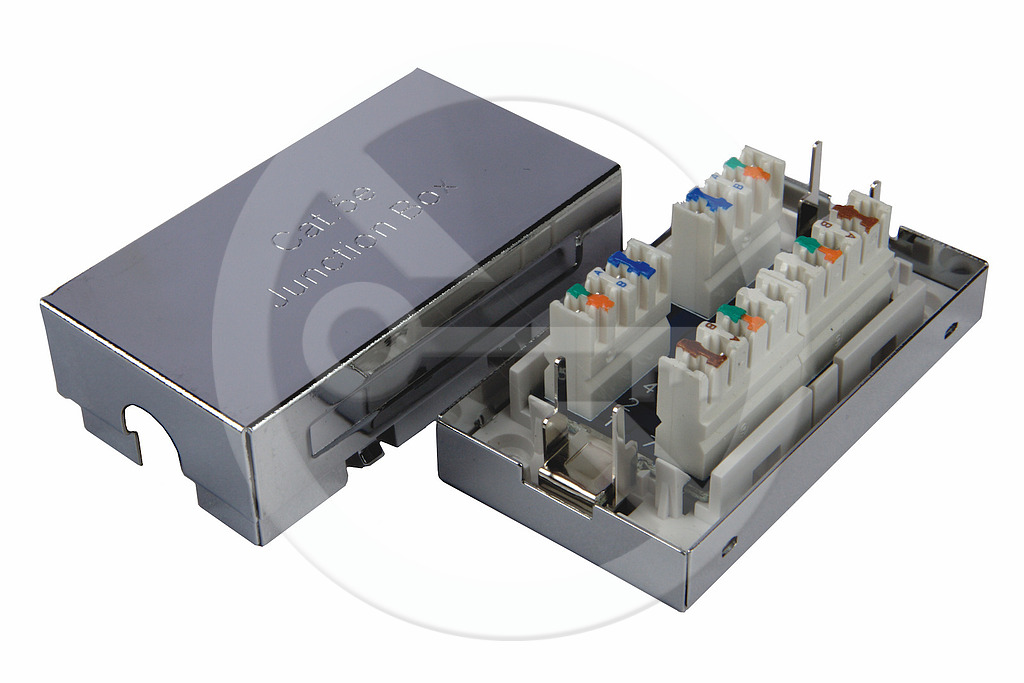

Connection Box CAT5E STP 8p8c LSA+/Krone KRJS45-VEB5

Order code: 13180089

Brand: Solarix

Guarantee period: 5 years

Unit of measurement (UoM): piece

Min. purchase amount (UoM): 1

Delivery date: immediately

Recommended price excluding VAT: 4,94 EUR

Connection boxes allow a simple operation with installation cables, which can be easily extended.

recommend | print

Technical Parameters

Category: CAT6
Highest Supported Protocol: 1000BaseT
Connection Box Type: IDC
Shielded: Yes
Termination Module: Krone 8p8c
Min. Termination Module Life: 200 cycles
Conductor Size and Type: AWG 26 - 22, solid
Housing Material: FR acc. UL94-0
Color: White
Storage Temperature: -40 to 70°C
Operational Temperature: -10 to 60°C
Max. Operational Humidity: 93%

Product Description

By using connection boxes installation cables can be easily extended. Broken cables can be coupled with no need to install new cable segment. The connection boxes are designed to be solid, reliable and can be used for all standard 4- to 8- wire cables of 26 - 22 AWG and up to 10 mm outer diameter of the cable.

Can't download a file?Technical support

If you are not able to download a file please right click on the download link and select "Save link as..". (Internet Explorer, FireFox) or a similar menu item depending on the browser you are using (it may differ in different browsers and versions).

Case study

EN significant installations of Solarix cabling (2.16 MB) download file (pdf)

Manuals

EN maintenance and use of Solarix cabling (80.34 KB) download file (pdf)

Other

DWG Solarix (8.9 MB) download file (zip)
EN profile structured cabling Solarix (1.7 MB) download file (pdf)
