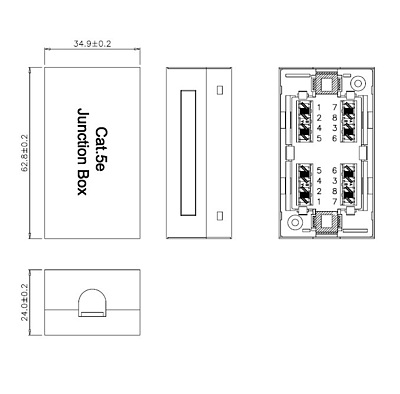

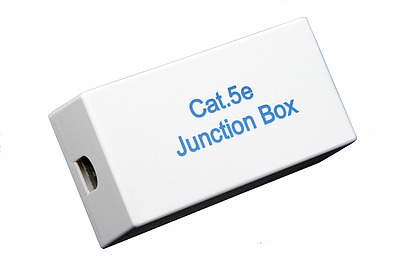

Connection Box CAT5E UTP 8p8c LSA+/Krone KRJ45-VEB5

Order code: 13180087

Brand: Solarix

Guarantee period: 5 years

Unit of measurement (UoM): piece

Min. purchase amount (UoM): 1

Delivery date: immediately

Recommended price excluding VAT: 3,28 EUR

Connection boxes allow a simple operation with installation cables, which can be easily extended.

recommend | print

Technical Parameters

Category: CAT6
Highest Supported Protocol: 1000BaseT
Connection Box Type: IDC
Shielded: No
Termination Module: Krone 8p8c
Min. Termination Module Life: 200 cycles
Conductor Size and Type: AWG 26 - 22, solid
Housing Material: FR acc. UL94-0
Color: White
Storage Temperature: -40 to 70°C
Operational Temperature: -10 to 60°C
Max. Operational Humidity: 93%

Product Description

By using connection boxes installation cables can be easily extended. Broken cables can be coupled with no need to install new cable segment. The connection boxes are designed to be solid, reliable and can be used for all standard 4- to 8- wire cables of 26 - 22 AWG and up to 10 mm outer diameter of the cable.
